Upgrade to a Professional Thermal Mass Flowmeter for Accurate Gas Measurement

Posted by: flowmetersup ,   ShilPhata
Mumbai
Businness Opportunity  : 20-Nov-2025

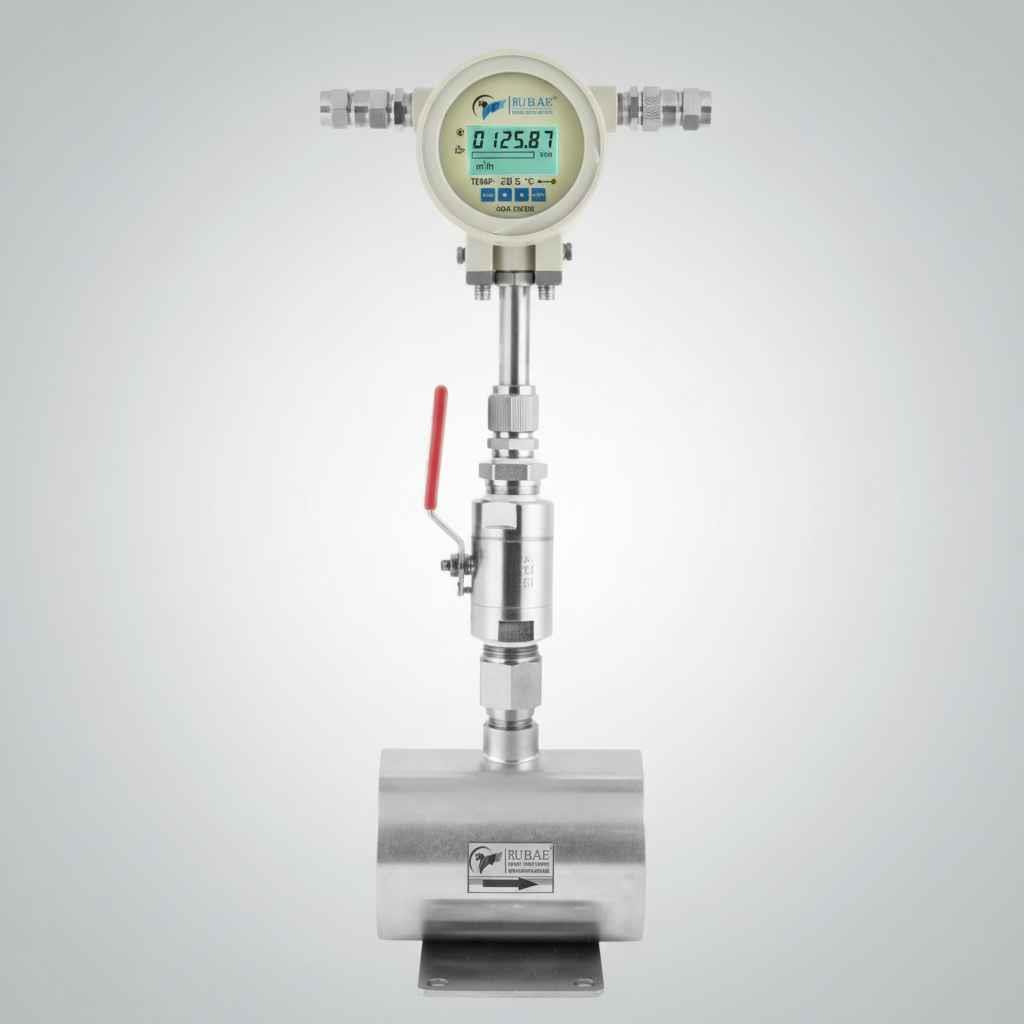

The BT-3020-X insertion thermal mass flow meter uses a dual platinum wire wound sensor enclosed in an SS316 sheath, ensuring accurate gas flow measurement. Its advanced sensor design features two platinum coils that work as heating and temperature-sensing elements for high accuracy.

It comes in integrated and remote transmitter versions with a graphical LCD showing temperature, velocity (nm/s), cumulative values, and real-time flow. Connectivity options include 4–20 mA HART, RS485, and pulse outputs. A flameproof enclosure and dual power inputs (24 VDC / 230 VAC) ensure safe operation in hazardous environments.

The meter includes an integrated diagnostic system for continuous performance monitoring. Its insertion design allows easy installation with 3/4” or 1” NPT compression fittings and supports pipe sizes from 2” to 80” with different probe lengths. With no moving parts, it offers long life and simple maintenance.

The BT-3020-X is suitable for clean gases like air, natural gas, LPG, biogas, and flare gases, making it ideal for precise industrial gas monitoring.

BT-3020-X Features

Graphical LCD for flow, cumulative, velocity, temperature

4–20 mA HART analog output

Dual-chamber die-cast aluminum enclosure

3/4” OD probe for easy installation

SS316 construction with no moving parts

Dual power input (24 VDC / 230 VAC)

Field programmable

Optional IoT monitoring

Explosion-proof & weatherproof enclosure

BT-3020-X Benefits

Direct mass flow measurement

High accuracy

Negligible pressure drop

Works with many gases

High turndown ratio (up to 100:1)

Unaffected by pressure/temperature changes

No moving parts

Rugged design

Easy installation

Fast response time

Mechanical Specifications

Measuring principle: Calorimetric (CTA)

Sensor: Dual RTD platinum wire wound, SS316

Probe: SS316

Fittings: 3/4" NPT or 1" NPT

Ferrule: PEEK

Pipe sizes: DN50–DN2000

Probe lengths: 6”–80”

Call us 8355850162
